English instruction manual x 1, toolkit x 1, scraping knife x 2, polishing wheels x 2, rail track piecex10
Premium High-End Edge Banding Machine
- $16500USD/set *FOB Qingdao
- CNF/CIF Price will be given upon inquiry
- Stocks depends on the machine voltage required
- Wooden box packing or thick film packing
- 220v/380v (1phase/3phase) 50hz/60hz
- 1-year warranty, 3 months for wear and tear parts

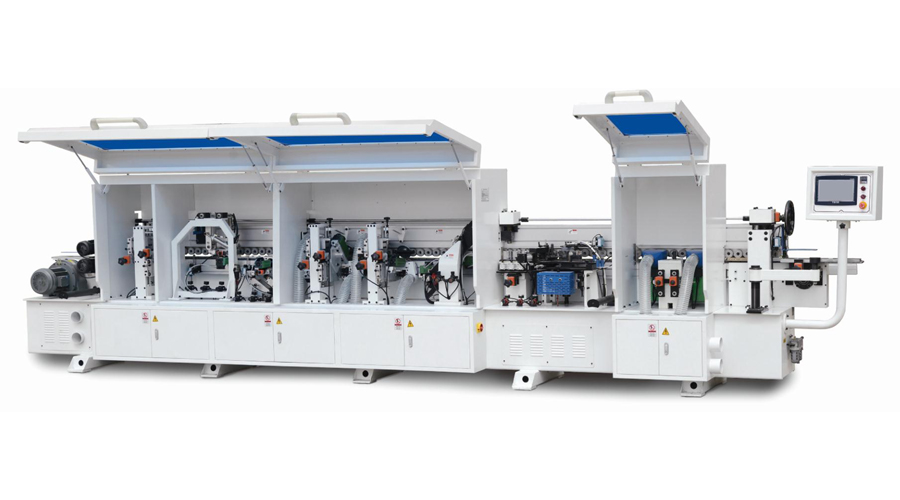

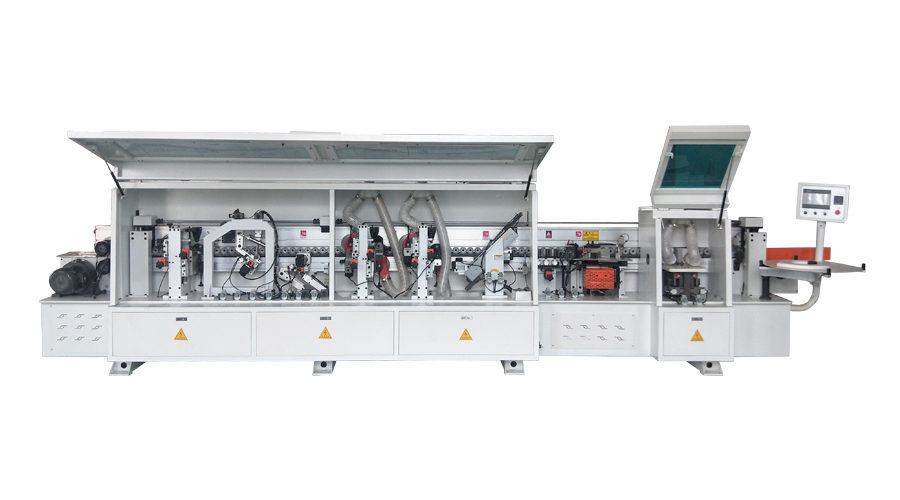

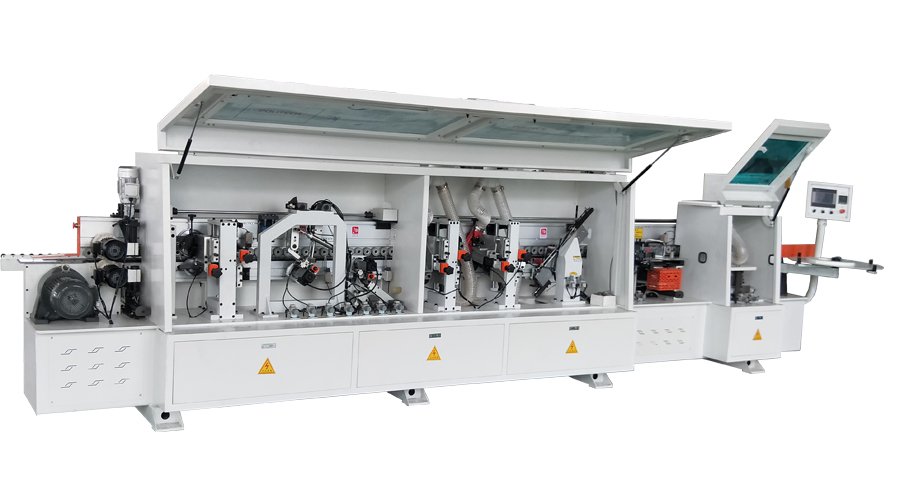

S800YF Edge Banding Machine – Outstanding Expertise for the Highest Requirements.
This machine comes with heavy duty mechanics to bring you the edge-banding productivity, versatility and precision for perfect edge banding result.
Other important features:

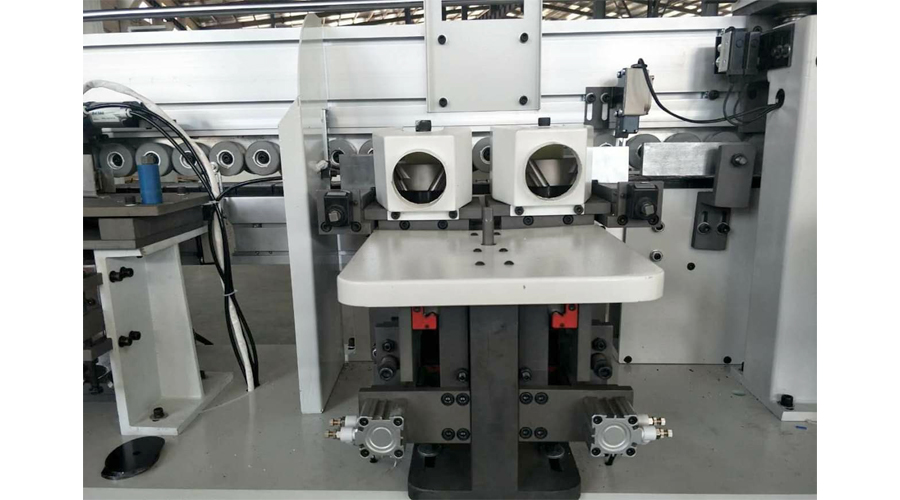

- Pre-Milling Unit

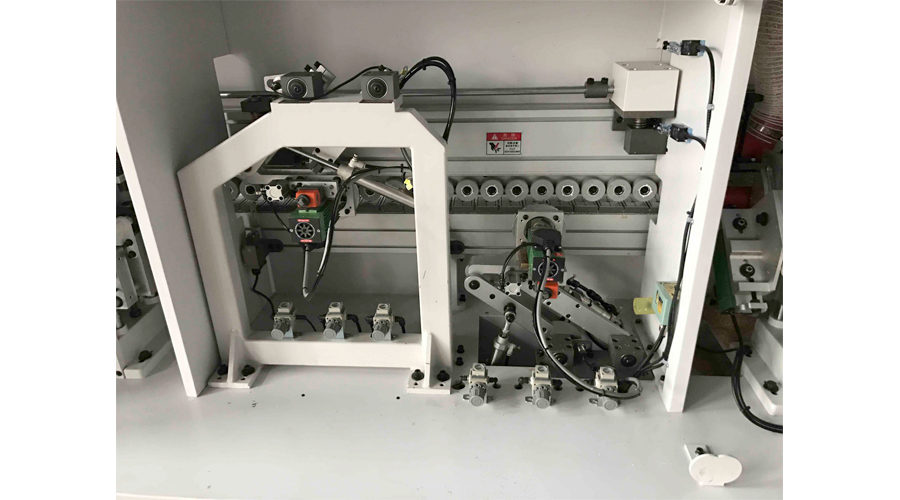

- Corner Rounding Units
- Digital Touch Screen Control Panel
- Manual or Electric Lift for Panel Thickness
- Auto Cleaning Unit (Optional)
| Model | S800YF |
| Motor | 15.6kW |
| Voltage | 380v or as your request |
| Dimension | 7100X1000X1600mm |
| Feed Speed | 15~23m/min |
| Panel Thickness | 10-60mm |
| Panel Width | ≥60mm |
| Panel Length | ≥120mm |
| Tape Thickness | 0.4-3mm |
| Working Pressure | 0.6-0.8MPa |
| Net Weight | 2800kg |
