Premium High-End Edge Banding Machine
  • $8500USD/set *FOB Qingdao
  • CNF/CIF Price will be given upon inquiry
  • Stocks depends on the machine voltage required
  • Wooden box packing or thick film packing
  • 220v/380v (1phase/3phase) 50hz/60hz
  • 1-year warranty, 3 months for wear and tear parts

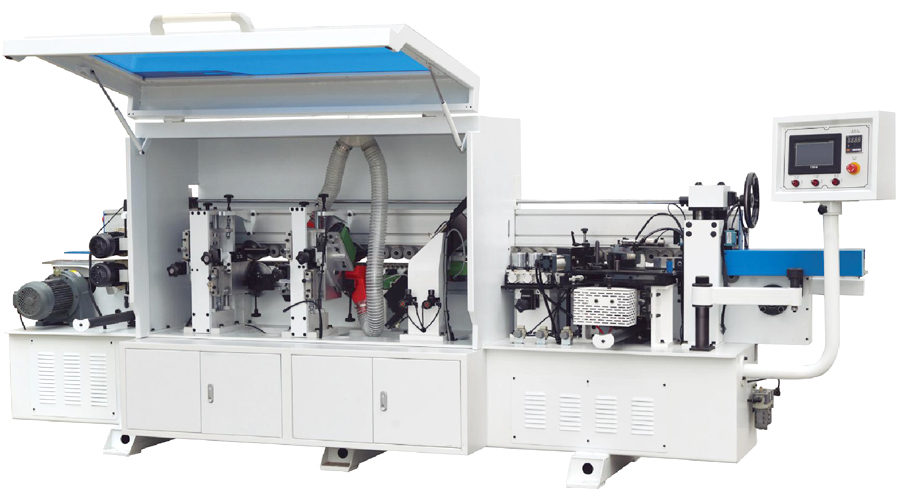

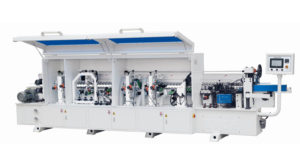

S800C Edge Banding Machine – Outstanding Expertise for the Highest Requirements.

This machine comes with heavy-duty mechanics to bring you the edge-banding productivity, versatility and precision for perfect edge banding result.

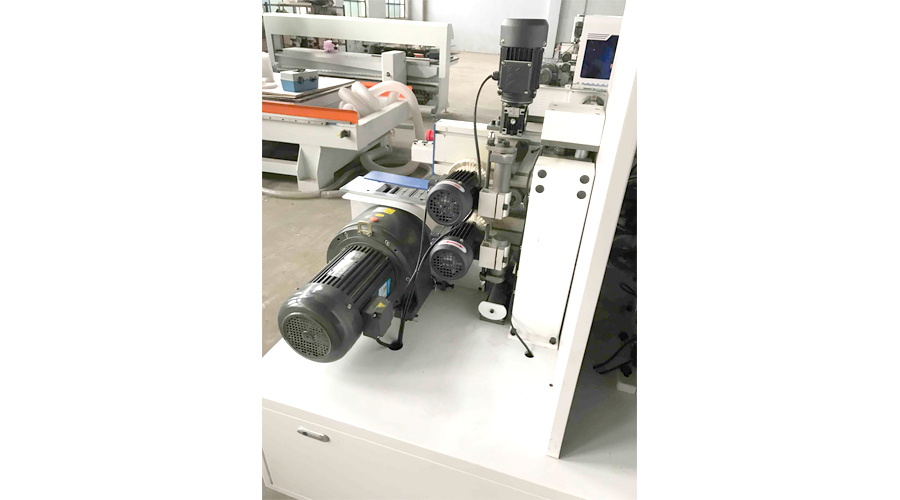

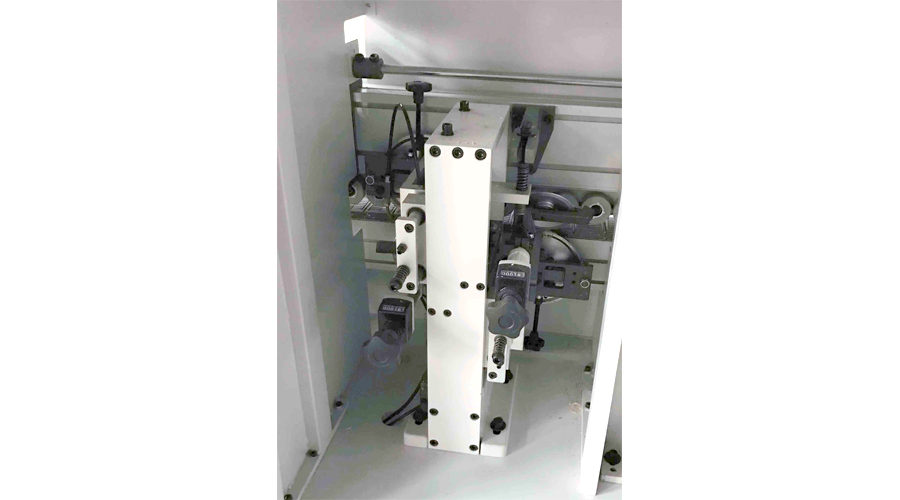

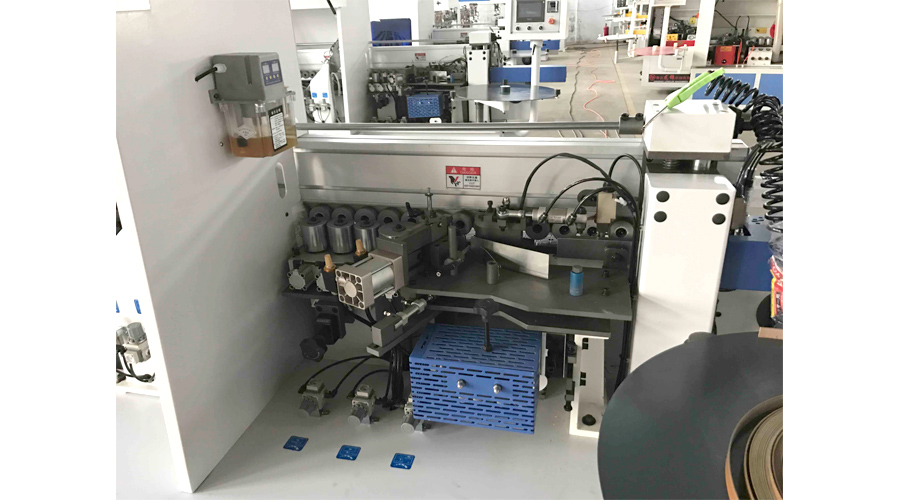

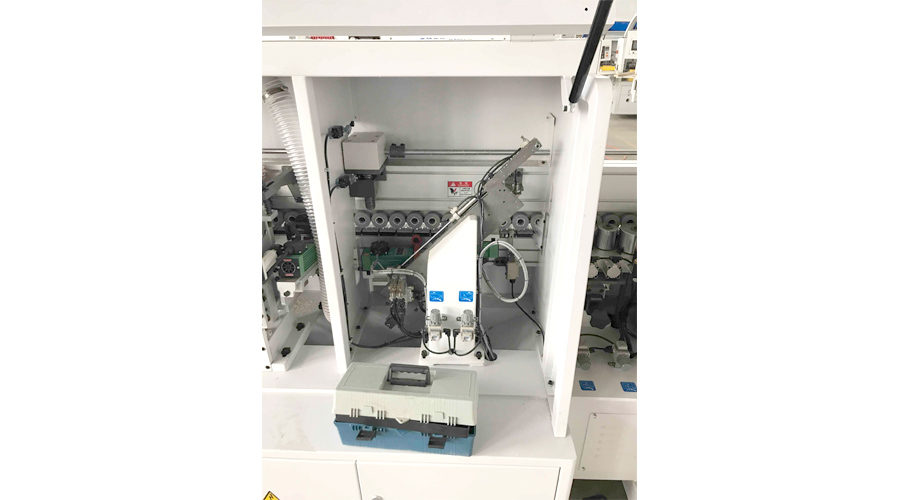

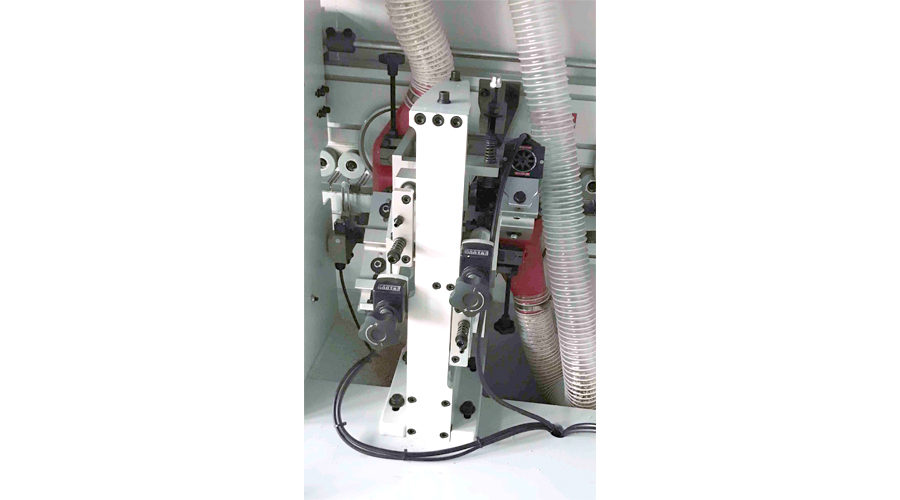

1 Existing functional units: Gluing -> End Cutting -> Fine Trimming -> Scraping -> Buffing

2 Main features highlights:

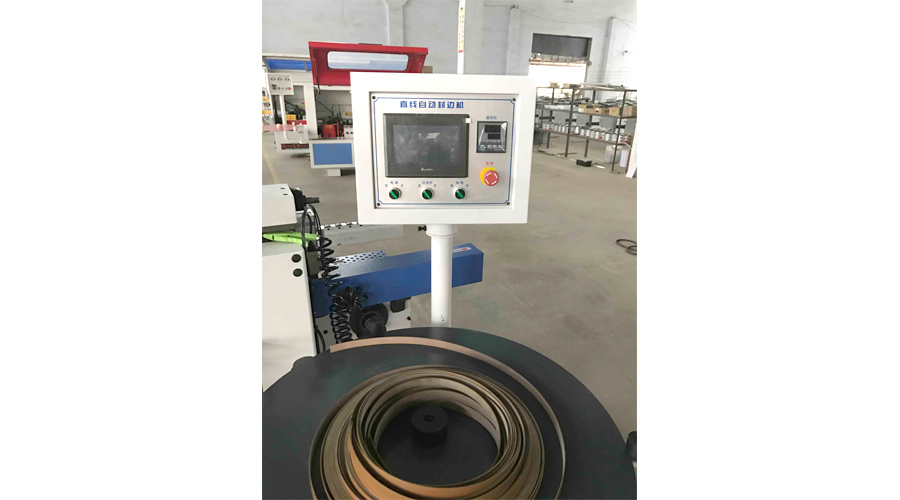

  • Digital Touch Screen Control Panel
  • Electric Lift for Panel Thickness
  • 3 Adjustable Feeding Speed (Low, Mid, High)

3 Other optional features:

  • Auto Cleaning Unit
  • Rough Trimming
  • Pre-milling
  • Corner Rounding
  • Grooving
  • Pneumatic Scraping
  • Flat Scraping
  • Thermal Transfer

Model S800C
Motor 9.2kW
Voltage 380v or as your request
Dimension 4150X1000X1600mm
Feed Speed 12~20m/min (3 Speeds Adjustable)
Panel Thickness 10-60mm
Panel Width ≥80mm
Panel Length ≥120mm
Tape Thickness 0.4-3mm
Working Pressure 0.6-0.8MPa
Net Weight 1900kg

English instruction manual x 1, toolkit x 1, scraping knife x 2, polishing wheels x 2, rail track piecex10
