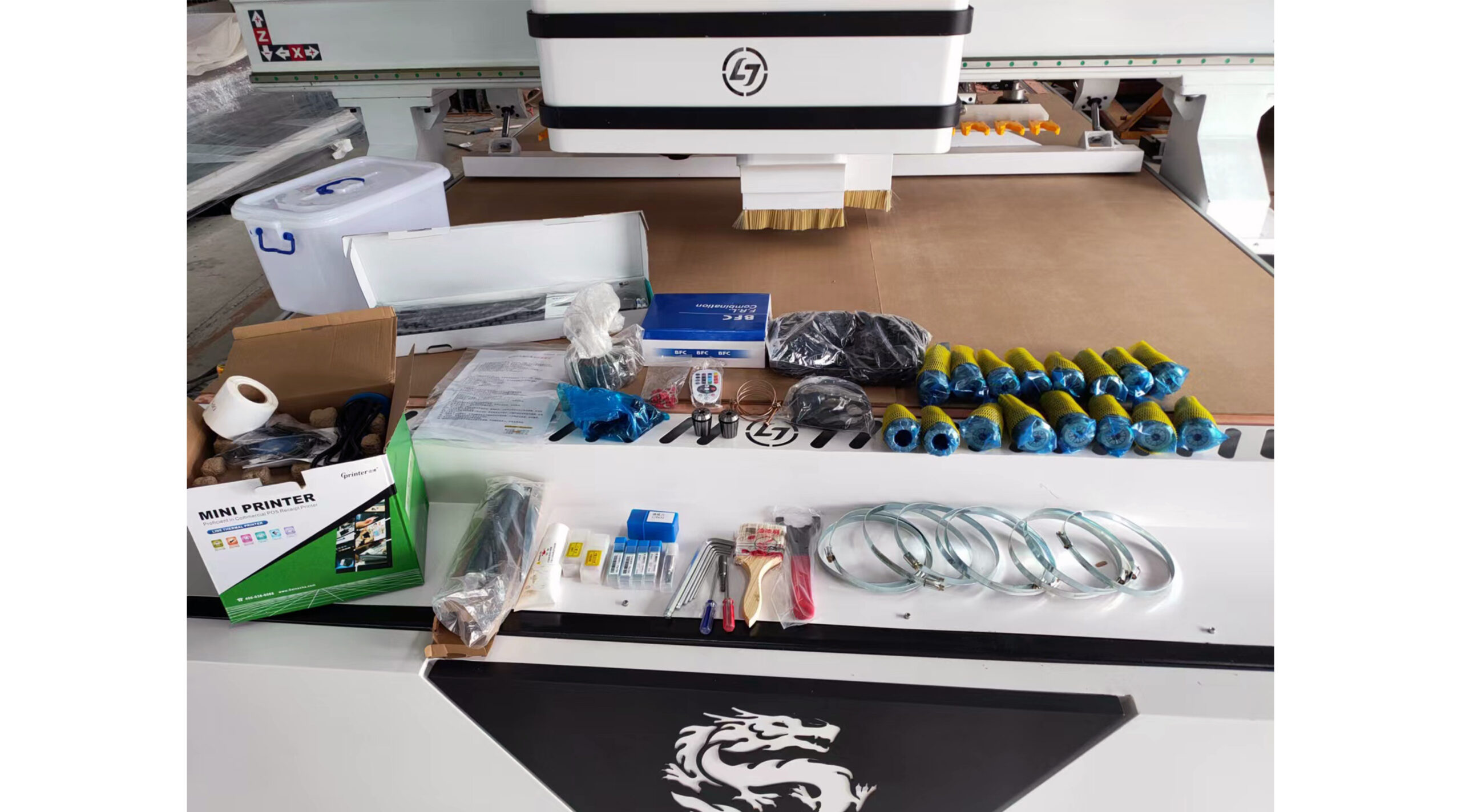

Accessories: English instruction manual x 1, toolkit x 1, nesting cabinet tool x 1 set, engraving knife x 1 set
Single Powerful 9kW Spindle with ATC
- CNF/CIF Price will be given upon inquiry
- Stocks depends on the machine voltage required
- Wooden box packing or thick film packing
- 380v (3phase) 50hz
- Voltage converter will be provided if the voltage is different from 380v.
- 1-year warranty, 3 months for wear and tear parts
1 Specifications:
- 2000*3000*200mm working area
- 9KW HQD ATC air cooling spindle, 18000RPM
- 11KW Delta Inverter
- Syntec 60WE control system
- 12 PCS Linear tool magazines under gantry
- Vacuum & T-slot working table
- 7.5kw water circulation vacuum pump
- 850W Japanese YASKAWA servo motors
- Auto tool sensor
- Auto lubrication system
- Helical Rack and pinion gear 1.5M
- Taiwan HIWIN linear rail #25 for X Y Z axis
- Taiwan TBI ball screw for Z axis
- Japanese SHIMO Reducer
- France Schneider AC contactor
2 Optional Feature:
- Detachable rotary side axis
- 6 Side drill head
- 5+4 vertical drill head
- Auto loading and unload (including loading and unloading tables, suction functions for loading as full set)
- 7.5kw dust collector cylinder type
- Auto Label Printing
- Loading and unloading function
- Protective cover
